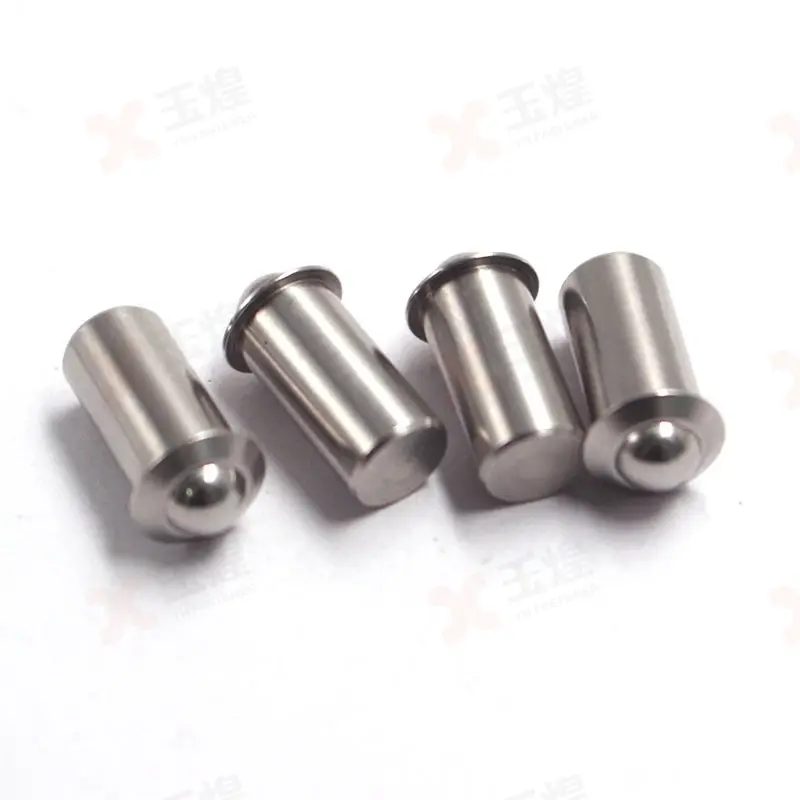

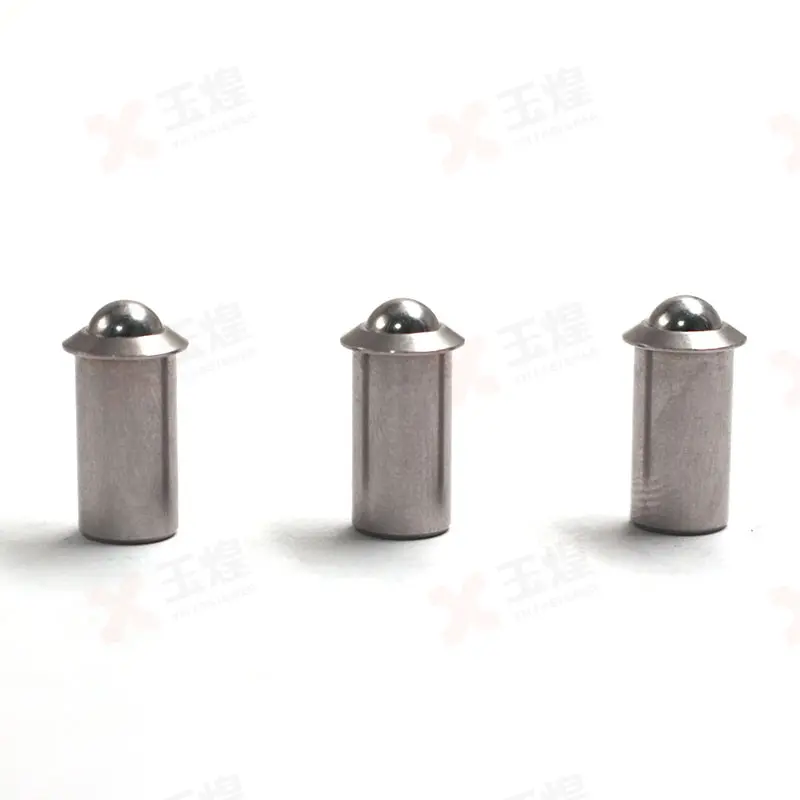

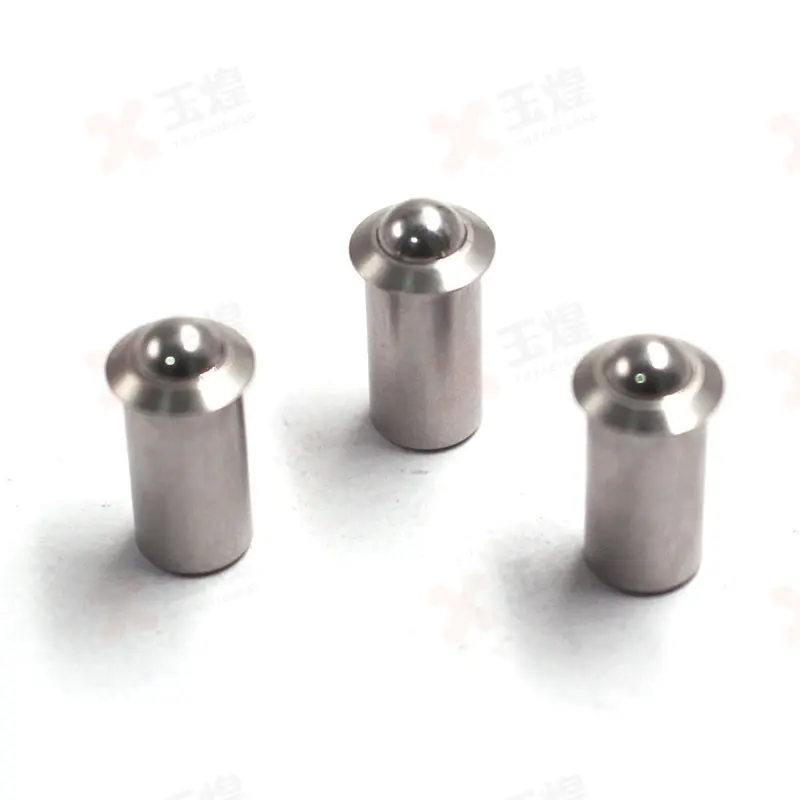

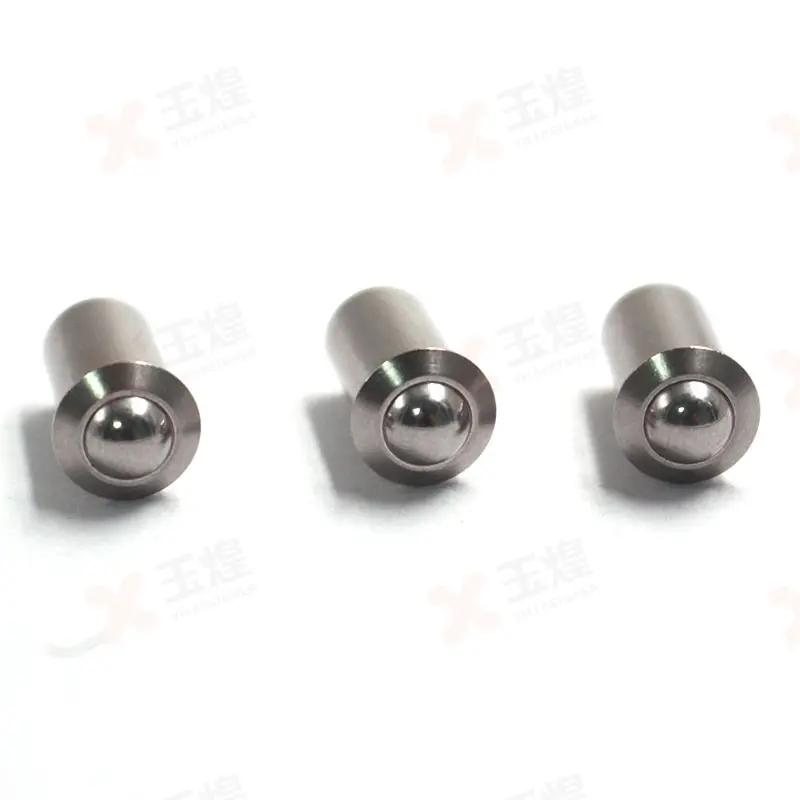

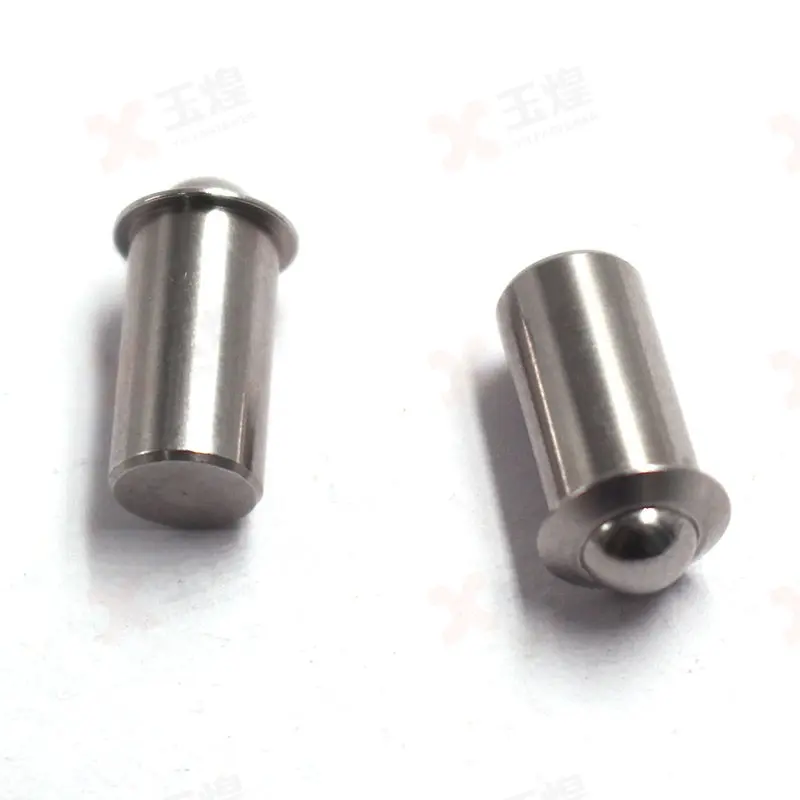

This product is a spring-loaded positioning column with a stainless steel shell combined with a ball end structure design. The overall structure is compact and suitable for precision assembly scenarios that require repeated positioning, limiting, or light load locking. The product is formed through precision turning, with a smooth outer surface and high dimensional stability, achieving good assembly consistency and long-term reliability.
Its core structure consists of a stainless steel body, internal springs, and high-precision ball bearings. After installation, the ball exerts stable pressure outward under the action of the spring, forming a reliable positioning point on the contact surface.
When external force is applied, the ball can be pressed into the interior of the shell and quickly rebound after release, achieving a smooth and automatic reset effect. This structure can effectively reduce mechanical impact, improve the fitting accuracy between components, and reduce wear.
This product adopts a press in installation method, which does not require additional thread processing and can be directly embedded into the preset hole position, simplifying the assembly process and improving production efficiency.
The central flange structure can play a limiting and fixing role, prevent excessive pressure, ensure consistent installation depth, and improve overall structural stability.
Stainless steel is suitable for humid or complex environments with excellent strength and wear resistance.
The surface of the ball is finely processed to ensure smooth contact and reduce frictional resistance.
Designed for high-frequency operation scenarios maintaining long-term reliability.
This type of spring positioning column is widely used in automation equipment, electronic assembly structures, fixtures, mechanical sliding mechanisms, and structures that require rapid positioning or indexing.
The product supports customization on demand, and can adjust elasticity, stroke, outer diameter size, and structural form according to different applications to meet diverse usage needs.
The body shell is made of high-grade stainless steel combined with precision ball bearings and durable internal springs, providing excellent corrosion and wear resistance.
It utilizes a press-in installation method. It can be directly pressed into preset holes without threading, with a central flange ensuring precise installation depth.
The central flange acts as a built-in stop limit to prevent over-pressing, ensuring consistent positioning depth and enhancing structural stability during operation.
It is primarily used in automation equipment, electronic assemblies, precision fixtures, mechanical sliding mechanisms, and quick indexing structures.
Yes, the product supports on-demand customization including outer diameter size, spring elasticity, stroke distance, and specific structural forms.
