A reliable security joint requires a sub-millimeter match between fastener recess geometry and driver bits. Explore our precision hardware matched directly with proprietary tooling.
A security wrench is not merely an assembly accessory; it represents the structural key to preventing unauthorized tampering while ensuring smooth, cam-out-free factory assembly.
Security screw heads present small engaging teeth or center pins that face concentrated stress. We forge our tools from genuine S2 shock-resistant alloy steel (loaded with molybdenum and vanadium) and vacuum heat-treat them. This eliminates brittleness, giving drivers superior ductile strength under high dynamic torque loads.
The single most frequent failure point in tamper-proof wrenches (such as Security Torx TR or Security Hex) is an off-center pin hole. Our factory implements high-speed Swiss-type CNC deep-hole gun-drilling to maintain center alignment within ±0.008 mm, eliminating driver bit splitting and head reaming during high-RPM power-driver installation.
Loose tolerances between the driver bit and screw socket drive premature cam-out, destroying both the fastener surface and bit corners. We profile our cold-forged and CNC-ground wrenches directly from the master CAD tooling of our screw heading dies, ensuring a non-slip, 98.7% surface engagement envelope.
China's Pearl River Delta represents the world's most complete precision manufacturing cluster. Here is how our comprehensive manufacturing ecosystem translates into measurable commercial and operational value.
From raw wire drawing and cold heading to progressive die stamping, automatic CNC machining, heat treatment, and laser marking, 100% of the manufacturing cycle occurs inside our 20,000 m² plants. This completely eliminates sub-supplier markup and lead-time delays.
Third-party tool vendors build wrenches to broad generic standards, while screw manufacturers only certify screws. We manufacture both the tamper-resistant fasteners and their corresponding wrenches under one roof, guaranteeing flawless mating without tolerance friction.
Need custom proprietary head recesses to protect warranty validation? Our in-house mold and EDM center designs, cuts, and validates customized driver bit prototypes within 5 business days, scaling up to 100,000+ pieces weekly with seamless production transfer.
Quality control is governed by strict APQP, PPAP Level 3 documentation, FMEA, and automated CCD optical sorting machines. Every wrench is verified for torque yield and dimensional fidelity, delivering defect rates of fewer than 5 PPM across international consignments.
A breakdown of high-security tamper-resistant recesses and their corresponding manufacturing and field characteristics.
| Recess Profile Style | Wrench Drive Profile | Cam-Out Resistance | Tamper Deterrence Rating | Typical Industrial Applications |
|---|---|---|---|---|
| Torx Pin-In (TR Security) | Six-lobe star with precision center counterbore | Extreme (Zero cam-out force) | High (Standard retail tools cannot seat) | Consumer Electronics, Telecommunication base stations, EV battery packs |
| Hexagon Socket Pin-In | Six-sided key with central drilling | High (Surface contact) | Medium-High | Commercial prison hardware, public transit seats, building access systems |
| Tri-Wing / Triangle Recess | Three-flute slotted or geometric triangle driver | Medium (Requires centered axial pressure) | Very High (Tooling tightly restricted) | Aerospace electronics, smart electrical grid meters, small appliances |
| Spanner (Snake-Eye / 2-Hole) | Twin-pin flat blade or solid twin-prong key | Moderate (Requires controlled low RPM) | High (Smooth aesthetic deterrence) | Architectural facades, elevator controls, public municipal panels |
| One-Way Slotted Disassembly Key | Reverse-wedge proprietary extractor key | Specialized mechanical wedge | Maximum (Engineered to be irreversible) | High-security barrier installations, municipal utility meters, perimeter fences |
Market intelligence and design paradigms guiding next-generation industrial fastening systems.
Global brands are migrating away from generic Security Torx toward custom polygonal recesses (pentagon pins, asymmetric teardrop stars, and wave patterns). By commissioning dedicated wrenches restricted to certified service centers, OEMs successfully protect aftermarket repairs and minimize liability exposure.
As smart manufacturing adoption accelerates, security driver bits are transitioning from standard manual L-keys to precision 1/4" hex shank automated bits featuring torsion reduction zones. These bits absorb shock from automatic high-speed screwdrivers, preventing micro-fractures in sensitive PCBs.
Conventional nickel-plated wrenches corrode rapidly in coastal marine or harsh chemical environments. Leading suppliers are introducing specialized manganese phosphate, titanium nitride (TiN), and physical vapor deposition (PVD) coatings that resist salt-spray exposure up to 1,000 hours without altering drive tolerances.
Engineered hardware and security wrenches deployed across mission-critical application landscapes worldwide.
EV battery packs carry lethal direct-current voltages. Automakers mandate security screws with custom wrenches accessible only by certified high-voltage service technicians, preventing electrocution hazards and unauthorized internal modifications.
Signage, metro fare collection gates, street surveillance fixtures, and tunnel ventilation louvers utilize tamper-proof Torx and spanner screws. Specialized L-wrenches allow swift city-maintenance access while repelling casual vandalism.
Hospital diagnostic systems, chemotherapy pumps, and calibrated surgical laser enclosures must preserve sterile and calibrated interior components. Proprietary security wrenches stop uncertified technicians from tampering with internal sensors.
Utility fraud costs energy distributors billions annually. Electric and water meter enclosures rely on triangular recess pan-head fasteners and custom sealing screws, requiring registered, serial-numbered utility keys for meter reads and field audits.
Comprehensive engineering clarifications addressing common procurement, manufacturing, and design inquiries.
We use synchronized tooling calibration. Our wire cold-heading punch dies and CNC wrench-milling cutters are machined from identical 3D master CAD models within the same tooling shop. Optical shadowgraphs and 3D coordinate-measuring machines (CMM) confirm that the engagement clearance remains strictly between 0.02 mm and 0.04 mm, maximizing torque transfer while eliminating surface wear on screws.
For high-torque or automated screwdriver bit applications, we recommend S2 modified industrial tool steel, quenched and tempered to HRC 58-62. For standard handheld L-keys and non-critical manual servicing kits, Chrome Vanadium (CR-V, 6150) heat-treated to HRC 52-56 provides dependable torsional resilience, superior flexural strength, and reduced unit procurement costs.
Yes. We regularly formulate proprietary head drives (asymmetrical five-point, multi-pin, curved non-concentric flutes) exclusively registered to single corporate clients. We manage custom tooling under strict Non-Disclosure Agreements (NDAs), guaranteeing that driver bits and wrenches are never sold or released to third parties or open markets.
Standard options include manganese phosphating (oiled), electro-galvanized bright zinc, industrial chrome plating, electroless nickel, and specialized electro-deposited black oxide. For outdoor telecom or marine exposure, we offer vacuum-applied PVD coatings and zinc-nickel alloy coatings passing up to 720–1000 hours of ASTM B117 neutral salt spray testing without red rust.
Every delivery includes full lot traceability documentation, including Raw Material Mill Certificates, Heat Treatment Hardness Charts (Rockwell C), Dimensional Inspection Reports (FSI/FAIR), and RoHS/REACH environmental compliance test reports. For automotive programs, complete PPAP Level 3 documentation packages are provided.
Tooling creation and initial pre-production evaluation samples are typically completed within 7 to 10 working days. Following First Article Approval (FAA), full production runs of 50,000 to 500,000 pieces are completed within 18 to 22 business days, supported by expedited courier shipping for critical OEM line deadlines.

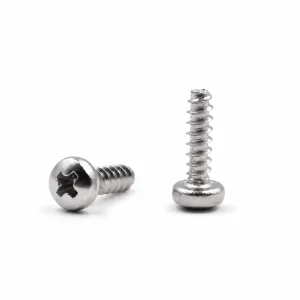

Explore our extensive line of standard and custom screws, designed for automated assembly across electronics, automotive, and industrial housings.
