OEM 304 Stainless Steel Machine Screws Pan Head Phillips Metric M3 M4 M5 Class 8.8 For PCB Electronics Enclosure Assembly
View Product Specs
Explore our certified cold-headed machine screws, captive washer units, waterproof seals, and micro-positioning hardware designed to eliminate secondary manual assembly.
Yu-Huang Electronics Dongguan Co., Ltd. (YH Fastener) sets the empirical benchmark for high-stress captive screw-and-washer configurations across three state-of-the-art Chinese manufacturing bases.
Our plants operate under audited IATF 16949, ISO 9001, and ISO 14001 frameworks. Every pre-assembled fastener batch undergoes destructive torque testing, metallurgical cross-sectioning, and automated optical laser sorting to eradicate unthreaded blanks or missing washer assemblies.
Unlike fragmented manufacturers who subcontract blank rolling and heat treatment, our Dongguan, Shaoguan, and Wuhan facilities integrate cold wire drawing, heading, multi-station washer captive feeding, thread rolling, continuous mesh-belt furnace hardening, and electroplating under one single entity.
Tooling geometry dictates thread accuracy and washer captive clearance. Our in-house EDM and tool-and-die center produces prototype tooling for bespoke heads (tri-lobe, Torx Plus, tamper-proof, ultra-low profile) in less than 7 working days, drastically compressing the NPI lifecycle.
Why Tier-1 engineering procurement leads prefer direct-from-factory partnerships in China for complex SEMS and pre-assembled screw assemblies over regional intermediaries.
Situated in the Greater Bay Area industrial belt, we source premier wire rods (AISI 304, 316, SCM435, 10B21) and dynamic spring steels within hours, safeguarding supply chains against raw material volatility.
Our proprietary dual-track heading-to-rolling feeds automatically captivate flat, split-lock, wave, or conical external-tooth washers before roll-forming the thread crest, guaranteeing zero detached parts on your production lines.
Pre-assembled fasteners encounter differential galvanic corrosion between screw body and washer. Our factory features proprietary eco-friendly trivalent zinc, Geomet, zinc-nickel plating, and de-embrittlement baking units.
Eliminate double-handling inventory costs. Factory-direct procurement of pre-assembled units lowers operational cycle times by up to 34% compared to keeping separate stock keeping units (SKUs) for bolts and washers.
The convergence of industrial automation, electrified vehicle architectures, and micro-electromechanical components is revolutionizing the pre-assembled screw engineering space.
Electric vehicle (EV) battery enclosures demand pre-assembled sealing screws equipped with chemically bonded elastomer O-rings or captive silicone gaskets. These assemblies maintain IP67/IP68 hermetic seals while providing grounding through tooth-lock washer combinations.
Factory Solution: Integrated fluoroelastomer (FKM) and EPDM pre-molded screws capable of withstanding thermal runaway conditions and dielectric isolation requirements.
Automated screwdriving robots suffer feed jamming when washers slide excessively or have asymmetric dimensional tolerances. Next-gen pre-assembled screws are engineered with precision rolling collars that lock the washer concentric to the screw shank.
Factory Solution: High-precision concentric roll stops and chamfered pilot points that eliminate cross-threading during 4,000 RPM high-speed robotic insertion.
Modern engineering designs combine magnesium alloys, reinforced thermoplastics, and high-strength steels. Fastener designs must accommodate differential thermal expansion without preload relaxation.
Factory Solution: Pre-assembled twin-washer configurations (Belleville spring washer + hardened flat washer) that sustain active dynamic clamping load throughout severe operating thermal cycles (-40°C to +150°C).
Comprehensive design parameters for mechanical design engineers specifying pre-assembled fastener hardware for production lines.
| Dimensional Range | Common Configurations | Standard Materials | Available Surface Finishes | Applicable Standards |
|---|---|---|---|---|
| M1.2 to M12 (#0 to 1/2") |
Screw + Flat Washer (Plain) | Carbon Steel (Class 4.8, 8.8, 10.9) | Blue/Clear Zinc, Yellow Zinc Plating | DIN 6900-1 / ISO 10644 |
| M2.0 to M10 (#2 to 3/8") |
Screw + Helical Spring Lock Washer | Stainless Steel (AISI 304 / A2-70, 316 / A4-80) | Passivation, Electro-Polishing | DIN 6900-2 / ASME B18.13 |
| M2.5 to M8 (#4 to 5/16") |
Screw + Conical / Belleville Spring Washer | Alloy Steel (SCM435, 10B21 Boron Steel) | Zinc-Nickel (Zn-Ni) Alloy (12-16% Ni) | JIS B1188 / DIN 6900-3 |
| M1.6 to M6 (#1 to 1/4") |
Screw + External / Internal Tooth Washer | Brass (H62, H65 CuZn Alloys) | Black Oxide, Zinc Flake (Geomet, Dacromet) | Automotive Tier-1 Custom OEM |
| M2.0 to M12 (#2 to 1/2") |
Double Washer (Flat + Split Lock) | Copper, Aluminum Alloys (6061-T6) | Pre-applied Microencapsulated Loctite / Nylon Patch | Custom 2D/3D Print Specifications |
Engineered hardware deployed where fastener vibration, galvanic corrosion, or assembly cycle delays lead to critical operational failures.
Chassis control units, throttle bodies, and transmission brackets using class 10.9 pre-assembled SEMS to counter continuous harmonics.
Micro-sized M1.2 to M2.0 pre-assembled screws with anti-loosening nylon threads for smartphones, gimbal cameras, and wearables.
Solar microinverters and wind power controllers requiring tooth-lock SEMS for definitive grounding and lightning discharge isolation.
Non-magnetic 316 stainless steel captive plunger and washer screws for MRI equipment, surgical robotics, and fluid sensors.
Rack mount server chassis, high-frequency antenna enclosures utilizing captive sealing hardware to prevent EMP leakage and ingress.
A systematic framework for supplier qualification used by international supply chain directors when selecting a Chinese production partner.
The washer inner diameter must sit reliably between the underhead blank shank and the rolled thread outer diameter. A premier supplier must demonstrate a 100% free-spinning washer check that avoids binding or cocking during torquing, which can trigger inaccurate torque-tension readings.
When assembling pre-assembled screws on automated lines, friction coefficients (k-factor) must remain stable within ±0.02. Buyers should mandate friction-test data (ISO 16047) to verify that surface topcoats and wax lubricants do not lead to loose joints or broken shanks.
Ensure that raw material origin certificates (3.1 mill test certificates), RoHS 3, REACH compliance, and full International Material Data System (IMDS) declarations can be furnished on demand with PPAP Level 3 documentation for automotive and high-spec systems.
Comprehensive engineering insights clarifying design, assembly automation, and supply chain questions.
Washers are mounted on an unthreaded headed blank whose unthreaded shank diameter matches the washer's inner clearance. Once the washer is placed on the shank, threads are roll-formed. Thread rolling displaces metal outward, creating a major diameter larger than the washer's inner hole, locking the washer permanently in place while allowing it to rotate freely.
Yes. Double-washer SEMS are a core part of our production line. Automated bowl feeders load the flat washer first against the shank, followed by the helical spring washer, before the screw enters the rolling dies. This assembly distributes clamp loads over softer mating surfaces while resisting vibration-induced loosening.
High-tensile fasteners undergo strict chemical cleaning followed by immediate baking in continuous de-embrittlement ovens at 200°C–230°C for a minimum of 4 to 8 hours within one hour of acid pickling or electroplating. For zero-risk designs, we recommend non-electrolytic zinc flake coatings (such as Geomet or Dacromet).
Standard catalog sizes start from 50,000 units, while non-standard drawing designs run from 100,000 pieces due to high-speed die setups. Initial prototypes with test reports can be completed in 7 to 10 days, with full-scale container orders shipping within 3 to 4 weeks across global ports.

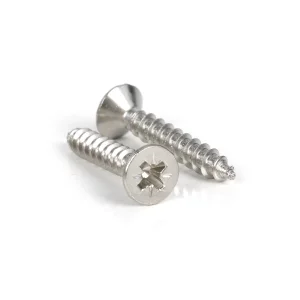

Complete your supply bill of materials with our proven self-tapping, heavy-duty truss socket heads, anti-tamper wrenches, and dynamic elastomeric sealing hardware.
