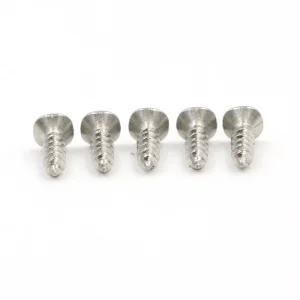

Explore our top-tier catalog of cold-headed pan head tapping fasteners, countersunk designs, and metric machine screws manufactured to stringent industrial benchmarks.

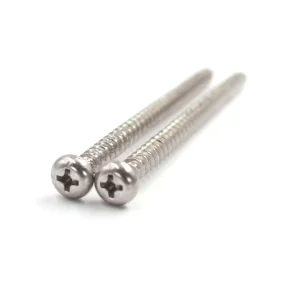

As automated robotic fastening lines replace manual assembly, pan head tapping screws (Type AB, B, and engineered PT® profile variants) have shifted from simple commodity items to critical structural components governed by tight torque-to-yield envelopes.
With electric vehicles incorporating composite battery enclosures and modular interior instrument panels, custom pan head tapping screws with 30° thread profiles minimize radial expansion stresses, preventing boss boss burst without metal threaded inserts.
Precision consumer computing and 5G telecommunication hardware necessitate Class 100/1000 degreased, passivated 304/316 austenitic stainless pan head screws designed to avoid micro-burr generation and galling during automated screwdriving.
Industrial solar converters and outdoor grid housings mandate integrated silicone or EPDM O-ring sealing grooves under the pan head bearing surface, delivering IP67/IP68 ingress protection alongside robust grounding and vibration holding force.
Operating across our primary 20,000 m² facilities in Dongguan with supporting plants in Shaoguan and Wuhan, YH Fastener integrates every stage of production to deliver verifiable engineering consistency.
High-speed wire EDM and CNC die sinking allow custom head geometries, security drives (Torx Plus, tamper-resistant pin, tri-wing), and special flange profiles with prototyping tooling finished in under 7 days.
High-speed rotary glass plate CCD sorting machinery inspects 100% of headed parts for thread pitch diameter, head height, slot depth, concentricity, and metal shavings before packaging.
Continuous mesh-belt carburizing and tempering furnaces achieve controlled case depth (0.05–0.18 mm) without core embrittlement, ensuring ductile core strength and sharp thread surface hardness (>HV 450).
Audited under IATF 16949, ISO 9001, and ISO 14001 systems. We routinely provide PPAP Level 3 documentation, full 3.1 material chemical certificates, and RoHS/REACH compliance records.
Review structural options, dimensional tolerances, and mechanical grades configurable through our engineering office.
| Parameter Category | Standard Technical Offerings | Custom / High-Performance Capabilities |
|---|---|---|
| Nominal Diameters | M1.2, M1.4, M2.0, M2.5, M3.0, M3.5, M4.0, M5.0, M6.0 (#0 to 1/4") | Micro-screws down to M0.8, stepped shanks, captive reduced shanks |
| Head Profiles | JIS B1115 Pan, DIN 7981 Pan, ISO 7049 Pan, ASME B18.6.3 Pan | Ultra-thin pan head (<0.5 mm thick), broad wafer pan, under-head undercut |
| Drive Recesses | Phillips (Type H), Pozi (Type Z), Slotted, Combination Cross+Slot | Torx (6-Lobe), Torx Plus®, Tamper-Proof Pin-in-Torx, Hex Socket, Tri-Wing |
| Thread Forms | Type A (Gimlet point), Type AB, Type B (Blunt), Thread Cutting (Type F/1/23) | PT® 30° / 48° asymmetrical plastic forming threads, trilobular high-torque threads |
| Substrate Alloys | AISI 1018, 1022A Carbon Steel, Stainless Steel 304 (A2-70), 316 (A4-70) | Brass (H62/H65), 410 Hardened Martensitic Stainless, Titanium Grade 2 / Grade 5 |
| Surface Protection | Trivalent Clear/Yellow Zinc, Black Zinc, Nickel, Black Oxide, Passivation | Geomet, Magni 565, Zinc-Nickel alloy (1000+ hrs salt spray), Dacromet |
| Vibration & Sealing | Plain bearing surface, integrated serrated washer underside | 360° blue nylon patch, pre-applied microencapsulated threadlockers, molded O-rings |
International sourcing managers face shifting tariff boundaries, localized green packaging rules, and elevated clean-feed requirements for automated equipment.
Robotic blow-feed screwdrivers jam when a single fastener presents flash on the head or an off-center recess. Our process delivers rigorous concentricity inspection to keep robotic high-cycle production lines running continuously.
Meeting strict EU RoHS, WEEE, and REACH mandates, our factory operates compliant automated barrel plating lines with zero hexavalent chromium (Cr6+), ensuring minimal carbon footprint and verified non-hazardous chemical content.
Global Tier-1 manufacturers increasingly avoid middle trading agencies by partnering directly with Chinese production plants that maintain engineering teams capable of reading complex GD&T drawings and conducting rapid tool redesigns.
Explore our custom water-proof O-ring assemblies, nylon patch anti-loosening screws, and specialized PT thread fasteners engineered for extreme mechanical conditions.
In-depth answers addressing material selection, tooling lead times, thread geometry differences, and quality assurance protocols.
