Custom Pan Head Sealing Screws 304 Stainless Steel Rubber O Ring IP67 Waterproof For Junction Box Assembly Manufacturer, Supplier

Sealing screws come with a rubber ring already fitted under the head. Tighten them and the rubber compresses against the surface. Water and dust cannot get through. No sealant needed. IP67 and IP68 rated. Stainless steel 304, 316, or zinc plated. Phillips pan head, hex washer head, or hex socket. M4 M5 M6.

Product Description

Why regular screws fail

You ever had a screw hole that just would not stop leaking? Water seeps in. Dust settles in. The screw rusts. The hole gets loose. The connection fails. You end up reapplying sealant every few months or replacing the whole thing.

How sealing screws fix it

Sealing screws come with a rubber ring already attached under the head. When you drive them in, that rubber gets pressed flat against your surface. It seals the hole the moment you tighten it. No waiting. No mess. No sealant.

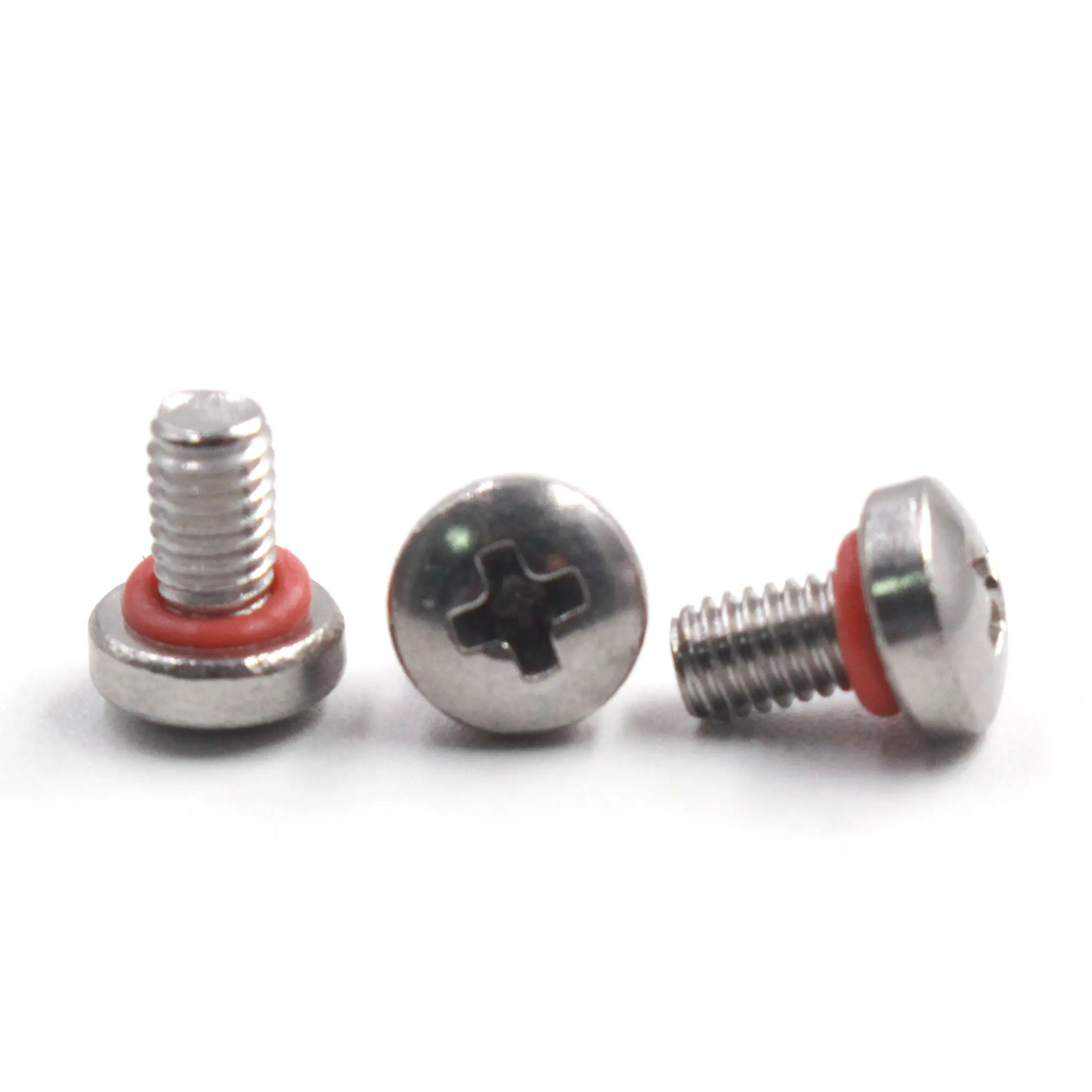

Sealing screw with rubber ring
The rubber does the work

The rubber sits in a groove under the head. As you turn the screw, the rubber compresses. Keep turning and it compresses more. By the time the head sits flush, the rubber has filled every gap around it.

Different rubber for different jobs

Not all rubber works the same way. You need to match it to your job.

NBR

is good around oil and grease. Use it on engines, pumps, and machinery.

Silicone

handles heat and cold. Stays flexible from very cold to very hot. Good for outdoor work.

EPDM

stands up to sun and rain. Roofers and outdoor installers use this one a lot.

FKM

is for harsh chemicals. Use it where acids or solvents are around.

Head styles we offer
Head styles options
Phillips pan head is the standard. Works with any Phillips screwdriver. Good for most jobs.
Hex washer head has a flange built in. No separate washer needed. Clamps down wide and even.
Hex socket head takes an Allen key. Good for tight spots where a screwdriver will not fit.
Metal choices
304 stainless steel

handles most outdoor work. Good corrosion resistance.

316 stainless steel

is better near saltwater. Use it on boats and coastal areas.

Zinc plated steel

is the budget option. Works for indoor or light outdoor use.

Waterproof ratings explained
IP67

means the screw can sit under one meter of water for thirty minutes. No leaks.

IP68

means it can stay underwater longer. Good for pumps and submerged gear.

Sizes we carry

M4, M5, and M6. Lengths from 6mm to 30mm. Need something else? Let us know.

Where people use these

Outdoor electrical boxes. Junction boxes. Meters. Boats. Car lights. Industrial panels. Metal roofs. Pretty much anywhere water is a problem.

Applications
Quality checks

We inspect every O ring before packing. We test every batch. ISO 9001 and ISO 10012 certified.

Quality inspection
Fastener range
  • Rubber ring already under the head
  • No sealant needed
  • IP67 and IP68 waterproof
  • Phillips pan head, hex washer head, or hex socket
  • NBR, silicone, EPDM, or FKM rubber
  • 304 stainless, 316 stainless, or zinc plated
  • M4, M5, M6 sizes
FAQ
Do I still need sealant?
No. The rubber ring seals it. Just drive the screw in.
O ring vs bonded washer – what is the difference?
O ring sits in a groove. Bonded washer is attached to the head. Both work fine.
Which rubber should I pick?
NBR for oil. Silicone for wide temperature range. EPDM for outdoor weather. FKM for chemicals.
What metal for outside?
304 stainless works. 316 stainless is better near saltwater.
What does IP67 mean?
One meter of water for thirty minutes. No leaks.
Can I reuse these screws?
Yes. Rubber bounces back. Use them several times.
About YH Fastener

YH Fastener has been making screws and fasteners since 1998. We produce sealing screws, self tapping screws, machine screws, shoulder screws, and custom fasteners. ISO 9001 and ISO 10012 certified. We inspect every batch before shipping. Factory direct. We ship to over 60 countries worldwide.

Factory production

Need a quote? Send us your drawing or sample. Tell us the size, material, and quantity. We will reply within 24 hours. OEM and custom orders are always welcome.
