Direct factory supply of precision cold-formed security screws, thread-forming solutions, and self-sealing mechanical components engineered for high-integrity joints.
Custom security screws have transformed from simple deterrent fasteners into critical hardware defense points safeguarding intellectual property and physical assets.
Standard security drives like Pin-Hex and Pin-Torx face widespread availability of commercial removal bits. YH Fastener develops asymmetrical, non-continuous curve recesses and proprietary keyed heads manufactured via precision electrical discharge machining (EDM) tooling. These kinematic geometries distribute torque uniformly during automated assembly while making standard extraction impossible without custom-mated insertion tooling.
High-security applications require extreme core hardness combined with anti-shear toughness to withstand chisel attacks and high-torque torque-out attempts. Through controlled multi-stage atmospheric carburizing, induction case hardening, and cryogenic conditioning, our fasteners achieve case hardness up to HRC 58-62 while maintaining structural core ductility (Class 8.8, 10.9, and 12.9 equivalents), eliminating embrittlement risks.
The frontier of security hardware lies in cyber-physical convergence. YH Fastener R&D is engineering passive RFID micro-transponders integrated into non-conductive fastener head cavities, as well as micro-etched matrix serial numbers. This allows aerospace and defense enclosures to record automated maintenance cycles, confirm authenticity, and trigger digital tamper alerts if mechanical preload drops below critical thresholds.
Tailored anti-tamper, sealing, and structural fastening architectures designed for demanding operational environments.
| Industry Sector | Operational Vulnerability | Recommended Fastener Configuration | Critical Engineering Standards |
|---|---|---|---|
| Consumer Electronics & IoT | Unsanctioned disassembly, battery tampering, IP reverse engineering | M0.8–M2.5 Micro Pentalobe, Tri-Point, Blue Nylon Patch anti-loosening | RoHS, REACH, Halogen-Free, ISO 14001 |
| Automotive & EV Infrastructure | High-voltage terminal access, DC fast-charger vandalization, vibration shear | Ultra-Torx Plus with central rejection pin, Under-head vulcanized EPDM seal | IATF 16949, USCAR-8, ISO 20898-1 Class 10.9 |
| Aerospace & Defense Enclosures | Avionics black box security, severe atmospheric thermal expansion cycles | A286 superalloy, Titanium Grade 5 bespoke spline head, Class 3A rolled thread | AS9100 baseline, MIL-STD-1312, NASM standards |
| Public Transit & Municipal Utilities | Infrastructure theft, signal box tampering, high-salinity road environments | 316 Marine-grade stainless steel shear-off break-away bolts, Kinematic drive | ASTM A193/A194, ISO 3506-1 A4-80, 1000h Salt Spray |
| Medical Equipment & Diagnostics | Field service calibration violations, aggressive autoclave sterilization fluid | Passivated 316L, 1-way tamper-proof clutch head, recessed captive design | FDA biocompatibility guidelines, ISO 13485 alignment |
Inside our 20,000 m² facilities in Dongguan, Shaoguan, and Wuhan, traditional cold-forming integrates with digital intelligence.
Our facilities house progressive 5-die and 6-die cold-heading machinery capable of outputting intricate security heads and complex underhead flanges with unbroken metallic grain flow lines. Cold forming increases tensile resistance compared to CNC turning while eliminating raw material waste, yielding unmatched mechanical endurance and high production speeds of up to 300 pieces per minute.
To support critical zero-defect (PPM < 50) mandates for automated assembly lines, our manufacturing floor deploys high-speed glass disk optical sorting systems. Utilizing 360-degree multi-camera arrays and neural network dimensional verification, our systems check head concentricity, recess depth, pitch integrity, and micro-burrs at line velocity, automatically ejecting non-conforming fasteners.
From raw stainless wire rod verification (spectrum chemical analysis) to annealing, precision thread-rolling, automated plating, and ultrasonic cleaning, all operations are logged into our centralized MES. Global enterprise buyers receive full traceability documentation including 3.1 Material Certificates, dimensional inspection data, and plating thickness x-ray fluorescence (XRF) test logs.
Sourcing precision custom security screws requires balancing rigorous design protection with supply continuity, compliance, and total cost of ownership.
Proprietary drive systems remain strictly protected. We execute legal non-disclosure agreements, store client-specific cold-heading dies under dual-custody tool vaults, and never offer custom geometries to external commercial channels.
Security screws fail in field operations when assembly driver bits are sourced from disparate manufacturers. YH Fastener concurrently designs and cold-forges the mating custom driver bits and keys, ensuring matched contact angles and minimal cam-out wear.
Every shipment is fully audited for global regulatory adherence: RoHS 3 (EU 2015/863), REACH SVHC candidate list evaluation, Conflict Minerals Declaration (CMRT), and IMDS automotive data entry for complete cross-border clearance.
To buffer against global maritime volatility, we support vendor-managed inventory (VMI), blanket order consignment, and localized safety stock reserves for Tier-1 automotive and electronic contract manufacturers worldwide.
Direct answers from our senior fastening engineers regarding materials, drive types, assembly integration, and testing protocols.

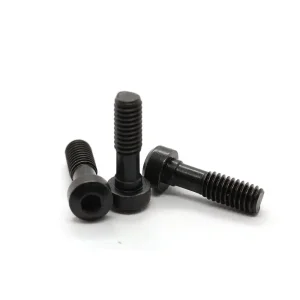

Explore our extensive line of thread-locking, captive, thumb-actuated, and heavy-duty socket fasteners manufactured to DIN, ISO, ANSI, and customer-specified blueprints.
