Machine screws are precision fasteners engineered with uniform threads along the entire length of the shank. Designed specifically to mate with pre-tapped holes or matched nuts, they do not tap their own thread into materials unlike wood screws or self-tapping fasteners. This structural characteristic ensures continuous, uniform clamping force, superior holding integrity, and seamless non-destructive disassembly whenever maintenance or reconfiguration is required.
The threads on machine screws run uniformly from beneath the head all the way to the tip. This continuous thread engagement enables mating with nuts or internally threaded components at any point along the screw shank, offering tremendous versatility across a vast range of joint thicknesses and custom assembly configurations.
Features a flat top with slightly rounded perimeter edges sitting above the surface. Provides a broad bearing surface area for optimal clamping pressure using standard cross-point tools.

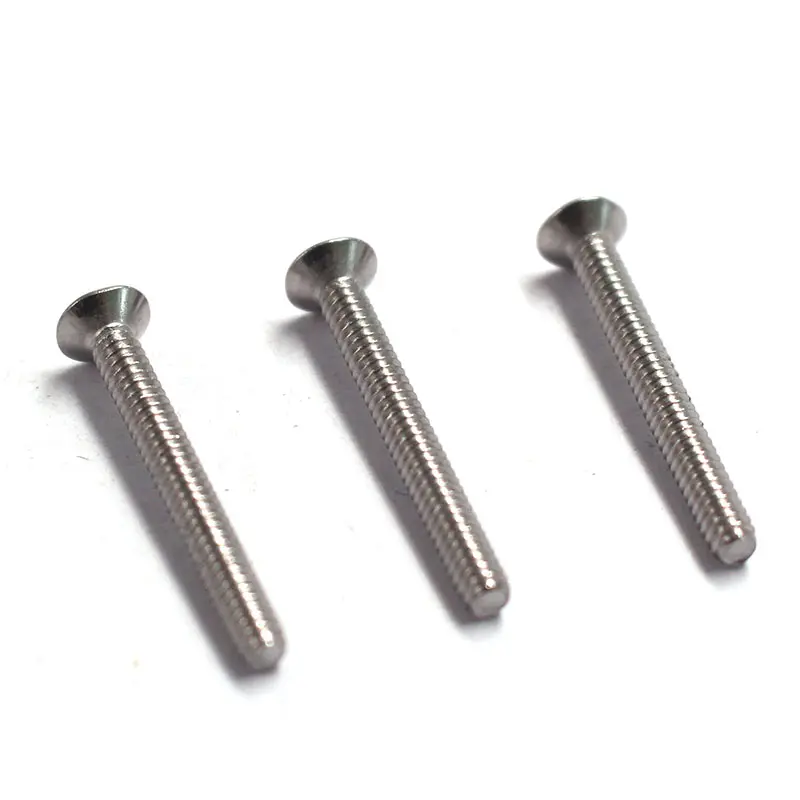

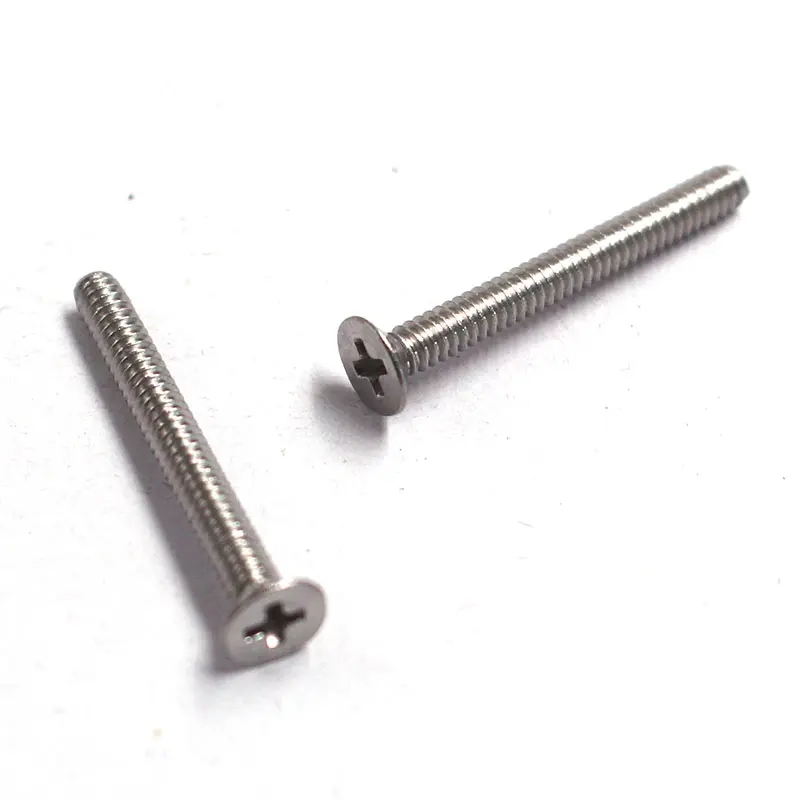

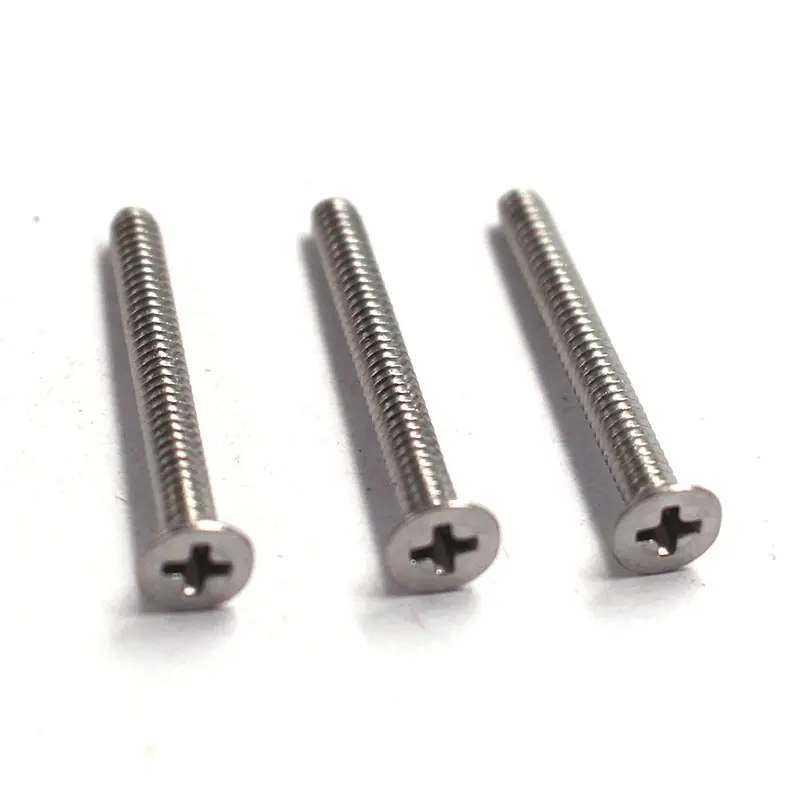

Designed with an 82-degree countersink cone. Allows the fastener to sit flush with or marginally below mating surfaces to ensure a smooth, protrusion-free mechanical finish.
Exhibits a higher head profile and deeper drive engagement slot, making it ideal for compact counterbored recesses or applications demanding deep bit purchase.
Configured for tightening via external wrenches or socket drivers. Tailored for heavy-torque conditions where conventional screwdriver bit designs may slip or limit applied torque.
Cross-recess profile providing self-centering bit engagement to suppress slip-out. Universally compatible with standardized manual and powered assembly bits.
Traditional linear slot mechanism. Readily serviceable with standard flat drivers across maintenance setups, demanding direct alignment during installation.
Six-point internal drive configuration engineered for maximum rotational force transmission without cam-out risks, suited for tight clearances and precision joints.
Grade 304 offers outstanding oxidation resistance across standard industrial and exterior builds. Grade 316 provides superior protection against chlorides, marine salts, and chemical exposure.
High-strength structural carbon steel coated in protective zinc plating. Delivers a dependable, cost-efficient fastening medium with rust prevention for indoor environments.
Inherently non-magnetic and highly resistant to atmospheric corrosion. Features an attractive finish and premium electrical conductivity for sensitive terminal connections.
Machine screws are categorized into standardized mechanical performance ratings to suit distinct stress environments:
Size Range: Metric options span from M2 to M12 in standard coarse pitches. Imperial threads include 2-56, 4-40, 6-32, 8-32, 10-24, 10-32, and 1/4-20. Standard lengths range from 3mm to 100mm, with comprehensive OEM custom dimensional engineering available upon order request.
Due to their high precision and reliable clamping behavior, machine screws serve critical roles across numerous industrial sectors, including:
• Electronics housing and enclosure assemblies
• PCB mounting and terminal panel construction
• Home appliances and consumer white goods
• Industrial instrumentation and precision machinery
• Automotive internal systems and modules
• Electrical switchgear, faceplates, and sockets
• Computer hardware systems and peripherals
• Medical device assemblies and diagnostic chassis

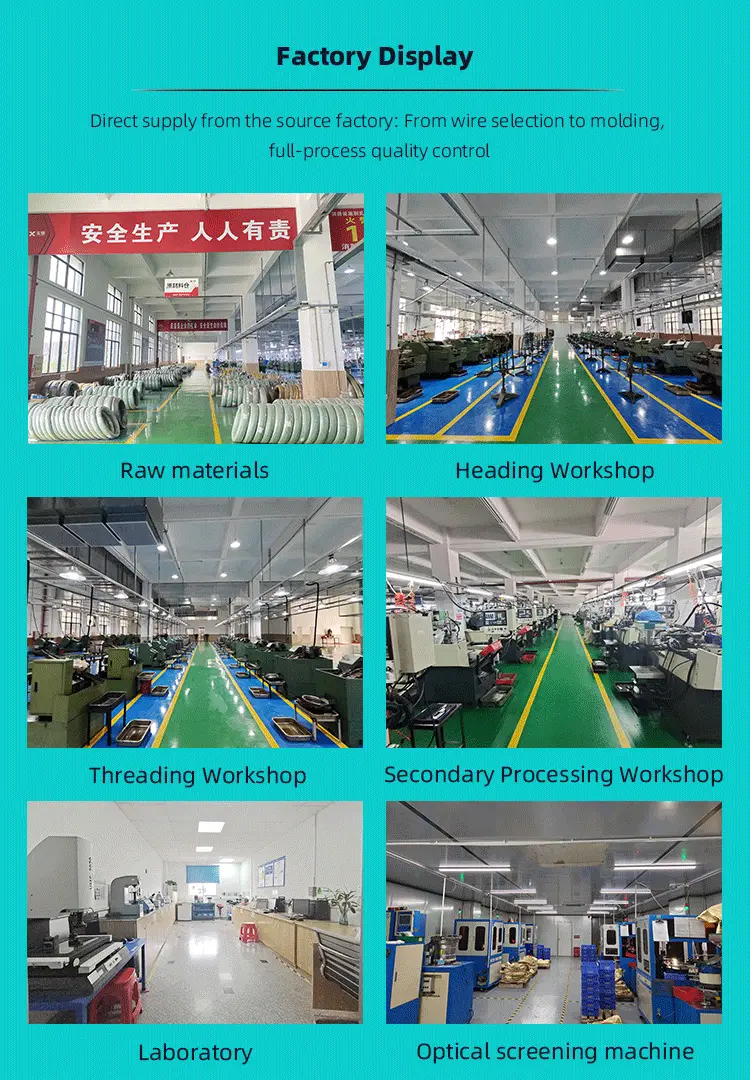

Every production batch undergoes strict quality control protocols, including go/no-go thread gauging, optical dimension verification, shank straightness checks, and head profile inspections. Full custom manufacturing satisfies specialized head geometries, non-standard drives, and tailored material formulations. Global export options and bulk wholesale schedules support commercial-tier production requirements worldwide.
| Fastener Category | Precision Machine Screws |
|---|---|
| Available Head Styles | Phillips Pan Head / Flat Countersunk Head / Fillister Head / Hex Head |
| Drive Configurations | Phillips Cross Recess / Slotted Straight / Hex Socket (Allen) |
| Raw Materials & Grades | Stainless Steel 304 & 316 / Carbon Steel (Zinc Coated) / Brass (Plain & Nickel Plated) |
| Mechanical Strength | Property Class 4.8 / Class 6.8 / Class 8.8 / Class 12.9 |
| Size & Thread Options | Metric: M2 – M12 | Imperial: 2-56, 4-40, 6-32, 8-32, 10-24, 10-32, 1/4-20 |
| Standard Lengths | 3mm up to 100mm (Custom extended lengths upon request) |
| Application Scope | Electronics, Automotive, Appliances, PCB Assemblies, Precision Mechanical Equipment |
Machine screws feature uniform machine-cut threads running along the shank and do not tap their own mating thread. They must be fastened into pre-tapped holes or secured using matching nuts, allowing for regular non-destructive disassembly and reliable clamping pressure.
The fully threaded shank extends uniform threading directly from under the head to the tip, allowing nuts and internally threaded components to engage at any position along the screw, accommodating various material thicknesses effortlessly.
Stainless Steel 304 provides reliable rust resistance for everyday industrial and indoor/outdoor machinery. For marine setups, saltwater exposure, or harsh chemical contact, Grade 316 provides superior resistance against chloride corrosion and pitting.
A Flat Head features an 82-degree countersunk design intended to sit flush with or slightly below the surface for an unobstructed, streamlined mechanical finish. A Pan Head features rounded edges that protrude above the surface, offering a wider contact area for distribution of clamping force.
Our machine screws are manufactured in Class 4.8 for general-purpose assemblies, Class 6.8 for increased yield loads, as well as Class 8.8 and Class 12.9 for high-stress industrial and critical structural connections.
Yes. In addition to our standard Metric (M2–M12) and Inch (#2-56 to 1/4-20) catalogs, we provide precision OEM manufacturing for custom diameters, non-standard lengths, specialized drives, and tailored surface coatings.
