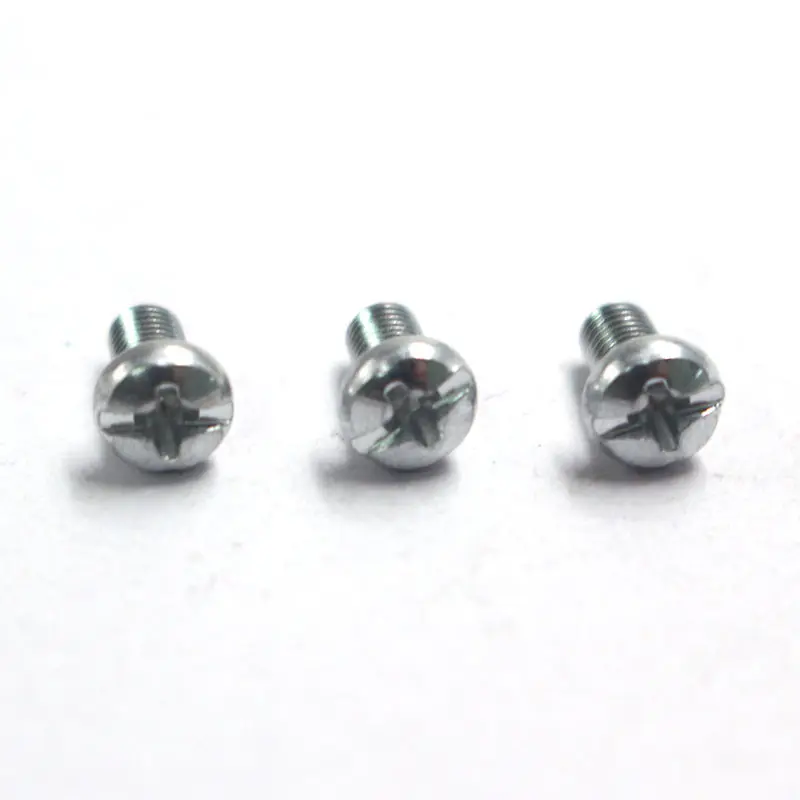

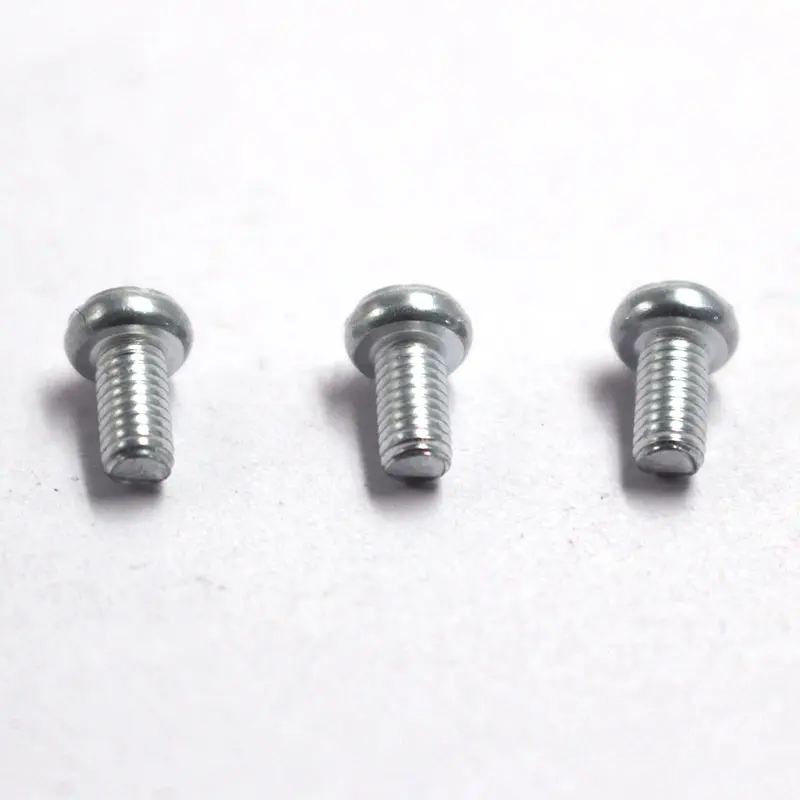

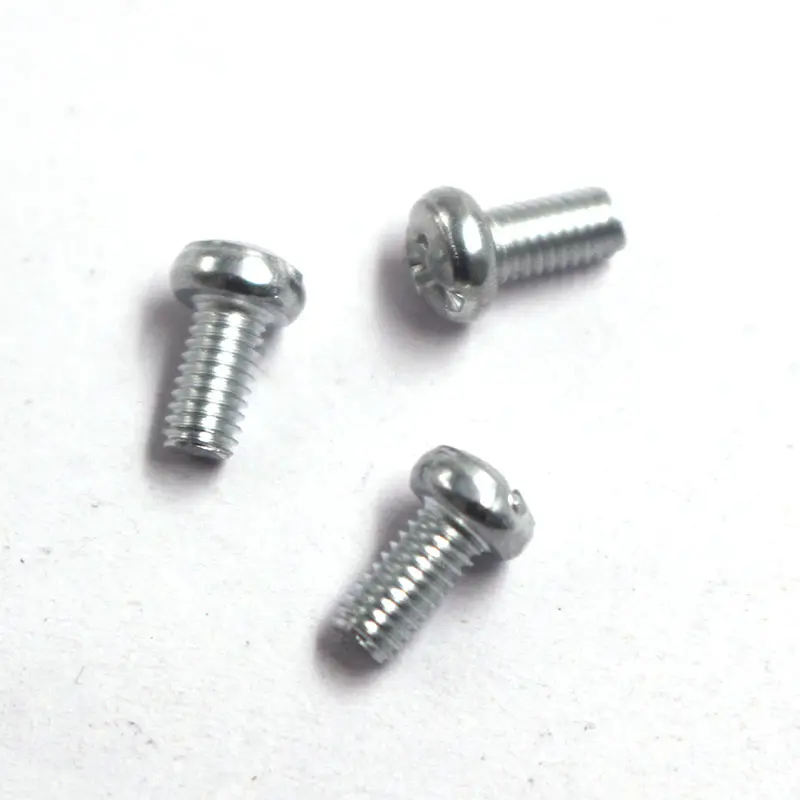

Pan‑Head Machine Screws adopt rounded pan‑head geometry together with full‑size uniform machine thread. Different from self‑tapping screws, machine‑thread profile cannot cut new threads; it is intended to mate with pre‑tapped internal threads or paired nuts. The flat bearing underside of pan‑head spreads clamping force evenly without countersink recess, ideal for assemblies where screw head remains exposed above workpiece surface.
This series of Pan‑Head Machine Screws targets B‑end OEM manufacturers and precision hardware contractors, widely adopted for medium‑precision fastening tasks in electronics, control cabinets and general mechanical components.
Core Features & Competitive Advantages
1. Optimized Pan‑Head Bearing Structure
Our Pan‑Head Machine Screws have smooth rounded pan‑head with flat bottom contact surface. Larger bearing area disperses tightening stress and reduces indentation risk on thin plastic and thin‑wall sheet‑metal parts. No countersunk hole machining required for panel and cabinet mounting work.
2. Precision‑Formed Parallel Machine Thread
Uniform standard machine‑thread profile guarantees consistent fit‑up with pre‑tapped holes or matching nuts. Thread dimensional accuracy follows ISO / DIN metric standards, minimizing jamming, cross‑threading and loose connection risks during repeated disassembly‑reassembly cycles.
3. Multi‑Material Portfolio For Diversified Working Conditions
SUS304 / SUS316 stainless‑steel and hardened carbon‑steel grades are optional. Stainless‑steel variants deliver reliable rust‑resistance for humid and outdoor environments. Cost‑effective carbon‑steel versions serve mass‑production indoor projects.
4. Ready‑Stock Specifications Plus Custom Manufacturing
Metric sizes M2‑M10 are in stock. Drive options include Phillips cross‑recess, Torx and slotted. Custom head dimension, thread length, special thread pitch and surface finish can be produced according to customer drawings or physical samples.
5. Multiple Surface‑Treatment Solutions
Zinc‑plating, black‑oxide, nickel‑plating and stainless‑steel passivation are selectable. Nylon‑patch anti‑loose coating can be applied on threads for assemblies subjected to continuous equipment vibration.
Technical Parameters & Specifications
| Parameter Item |
Standard Data |
Custom Option |
| Product Name |
Pan‑Head Machine Screws |
Custom logo marking on pan‑head |
| Drive Type |
Phillips cross‑recess, Torx, Slotted |
Special non‑standard drive profile |
| Head Type |
Rounded pan‑head |
Custom head diameter & head height |
| Thread Standard |
Metric ISO / DIN machine‑thread |
Custom fine‑thread pitch |
| Size Range |
M2‑M10 |
Non‑standard diameter & custom length |
| Material |
SUS304, SUS316, Hardened Carbon Steel |
Special alloy material upon request |
| Surface Finish |
Zinc Plating, Black Oxide, Nickel Plating, Stainless Passivation |
Nylon‑patch anti‑loose coating |
| Working Temperature |
-40℃ ~ 120℃ |
Custom coating for special temperature requirements |
| Minimum Order Quantity |
1000 PCS |
Small trial‑batch orders acceptable |
Application Scenarios & Industry Cases
Pan‑Head Machine Screws are widely deployed for medium‑precision fastening across multiple industrial sectors, not for medical‑device applications:
- Consumer‑Electronics Assembly: PCB components, device housings, control module fixing
- Electrical Cabinet Hardware: Control‑box panels, terminal bracket fastening
- Precision Light Machinery: Small mechanical assemblies, instrument component connection
- Indoor Equipment Enclosure: Household equipment shells, internal support mounting
- General Hardware Matching: Fastening projects requiring mating nuts or pre‑tapped holes
Real‑World Project Case: One electronics OEM replaced mixed‑spec ordinary fasteners with standardized Pan‑Head Machine Screws. Part model management complexity decreased, and field loose‑connection failure rate dropped obviously. Both sides maintain stable multi‑year large‑volume order cooperation.
Customer Pain Points & Targeted Solutions
Common Fastener Pain Points
- Mixed thread tolerance causes cross‑threading and jamming during assembly and repeated disassembly
- Small‑head fasteners generate point‑load pressure, leaving indentations on thin‑wall plastic and sheet‑metal panels
- Limited material & finish options make it hard to balance anti‑corrosion performance and project budget
- Off‑the‑shelf sizes cannot satisfy special cabinet and equipment structural dimension demands
Solutions Provided By Our Screws
- Precision‑rolled standard machine‑thread strictly follows ISO / DIN tolerance, lowering cross‑threading risk for repeated‑maintenance assemblies
- Broad pan‑head bearing surface evenly distributes clamping pressure, protecting thin‑wall shell surfaces from pressure damage
- Multiple material‑grade and surface‑finish combinations cover indoor, humid and mild outdoor operating‑environment requirements
- Drawing‑supported custom dimensions realize non‑standard size matching for special equipment and cabinet structures
Factory Production Strength & Supply Support
We are a professional fastener manufacturer with 30‑year manufacturing experience. We own independent mold‑making workshop, thread‑rolling workshop, heat‑treatment workshop and complete surface‑treatment production lines. Full production workflow of Pan‑Head Machine Screws is completed in‑house inside our plant.
Core Supply Advantages
- 7‑day quick sample turnaround for custom specifications
- Large‑volume stock for standard sizes; mass goods shipment within 3 working days
- Strict pre‑delivery inspection, defective rate controlled below 0.5%
- Comprehensive OEM & ODM support: drawing customization, customized‑package service
- Complete test‑report supply: tensile‑strength test, salt‑spray corrosion‑resistance test documents
Purchase Guide & After‑Sales Support
MOQ
1000 pcs for standard sizes; small trial‑order quantity negotiable
Payment Term
T/T, L/C at sight
Delivery Port
Major China seaports
Certification
ISO9001, SGS material certification, relevant industrial fastener‑standard certification
Full‑Set After‑Sales Support
- Professional engineering team provides online technical consultation to help you select proper model of Pan‑Head Machine Screws
- Free technical‑spec sheet and installation‑reference documents available upon request
- Quality‑caused defective products qualify for free replacement & compensation within warranty scope
- Exclusive preferential‑price policy for long‑term bulk‑order cooperative customers
Send us your drawing or physical sample. We will provide formal quotation within 24 hours. OEM and custom‑made orders are warmly welcomed.
Frequently Asked Questions (FAQ)
What is the difference between pan-head machine screws and self-tapping screws?
Pan-head machine screws feature uniform standard machine threads designed to mate with pre-tapped internal threads or nuts. Unlike self-tapping screws, machine screws cannot cut or tap their own threads and are ideal for precision assembly and repeated maintenance cycles.
Why choose a pan head instead of a countersunk (flat) head?
A pan head has a flat bottom contact surface that rests on top of the workpiece, evenly dispersing clamping forces over a wider surface area. This eliminates the need for countersink machining and protects thin-walled sheet metal or plastics from indentation and structural damage.
Which materials are best suited for corrosive outdoor or humid environments?
For humid, coastal, or outdoor environments, SUS304 and SUS316 stainless-steel screws with passivation are strongly recommended due to superior rust and corrosion resistance. Carbon steel with zinc plating or black oxide is typically utilized for indoor and cost-sensitive assemblies.
Can you produce custom drive styles, pitches, and dimensions?
Yes, full OEM/ODM drawing-based customization is supported. We can manufacture non-standard lengths, diameters, head profiles, special thread pitches, and drive configurations (such as Phillips, Torx, Slotted, or tamper-proof options).
How do you prevent screws from backing out in vibrating equipment?
We offer pre-applied nylon-patch anti-loosening thread coatings. The nylon patch increases rotational friction between mating threads, preventing screws from loosening under continuous mechanical shock and vibration.
What is your turnaround time for samples and volume orders?
Standard size screws in stock can be dispatched within 3 business days. For customized dimensions and specifications, sample turnaround is typically completed within 7 days, supported by comprehensive inspection and test documentation.
