Direct factory production lines covering cold-headed machine screws, high-torque industrial drives, and specialized anti-tamper sealing solutions.
Transitioning from simple deterrents to zero-clearance, permanent mechanical lockouts in mission-critical applications.
Traditional fasteners depend on symmetric drive walls that permit both clockwise installation and counter-clockwise removal. A custom one-way security screw employs micro-engineered sloped drive ramps. During installation, vertical driving surfaces engage the tool flush, allowing full specified tightening torque without premature head stripping. When reverse torque is applied, the drive tool encounters a curved 45-degree to 60-degree slip plane, dynamically forcing the driver bit out of the recess before mechanical purchase can occur.
Global theft of municipal utilities, lithium-ion battery modules, photovoltaic panels, and smart transit controllers has reached unprecedented industrial scales. Standard Torx-Pin or Hex-Pin fasteners only resist opportunistic vandals with basic hardware store tools. True custom one-way screws provide permanent locking architecture. Once driven home into tapped metal or anchored plastic, they cannot be manipulated without destructive industrial grinding or core-drilling, completely invalidating theft incentives.
Our manufacturing methodology leverages high-velocity, multi-station cold heading rather than secondary CNC turning. Cold forming realigns the metallic crystal grain flow lines continuously across the screw head-to-shank junction. This structural continuity yields exceptional tensile strength and fatigue life, ensuring head integrity remains intact even under persistent impact attacks, thermal expansion cycles, and extreme dynamic shear forces encountered in heavy industrial assemblies.
Rigid quality controls, strict metallurgical certifications, and micro-dimensional tolerances demanded by Tier-1 OEM assemblers.
Selection between Austenitic SS304/316 for marine atmospheric exposure, 410 Martensitic stainless for hardened self-drilling, and SCM435 quenched alloy steel for Class 10.9 structural clamping loads.
Carburizing or carbonitriding heat treatments providing surface case hardness up to HV 550-650 min to prevent mechanical chisel bites, combined with a ductile core of HV 280-380 to avoid brittle shear fracture.
Precision Class 6g/6h machine threads according to ISO 965, or tri-lobular thread-forming PT thread profiles engineered for high-ductility engineering polymers without inducing residual hoop stresses.
High-adhesion trivalent zinc, black nickel plating, or zinc-flake (Geomet/Dacromet) coatings achieving 1,000+ hours neutral salt spray testing without red rust or hydrogen embrittlement hazards.
| Mechanical Parameter | Standard Commercial Grade | Industrial High-Spec Grade | Custom Security Whitepaper Benchmark |
|---|---|---|---|
| Head Drive Geometry | Slotted One-Way / Clutch Head | Tamper-Resistant Sentinel / Tri-Groove | Proprietary Unilateral Sloped Cam Profile with Zero Extraction Angle |
| Ultimate Tensile Strength | 400 – 600 MPa (Class 4.8 / 5.8) | 800 MPa (Class 8.8 / A2-70) | 1040 – 1220 MPa (Class 10.9 / SCM435 / A4-80 Austenitic) |
| Surface Hardness Profile | Core Hardness Only (~HV 200) | HV 450 - 500 (Mild Case Hardening) | HV 620 - 700 (Induction Hardened Face, Ductile Core Structure) |
| Reverse Torque Slippage Limit | < 1.2 Nm (Tool Cam-Out) | < 0.8 Nm (Controlled Cam-Out) | 0.00 Nm Effective Mechanical Purchase (Continuous Radius Deflection) |
| Optical Sorting Inspection Rate | AQL 1.0 Sampling | AQL 0.4 High Precision | 100% Dual-Laser + 360° Multi-Camera Vision Inspection (<50 PPM) |
How Tier-1 engineering contractors, public utilities, and industrial equipment manufacturers implement one-way security lockouts.
Tampering with digital energy meters, commercial water sensors, and municipal gas telemetry boxes costs utilities billions annually. Custom one-way screws permanently secure terminal blocks, outer poly-carbonate covers, and current transformer access panels. By preventing utility bypass attempts without leaving overt mechanical fractures, these screws provide undeniable evidence of unauthorized physical breach attempts.
Electric vehicle supply equipment (EVSE) deployed in public curb side parking is vulnerable to copper cable theft, inverter vandalism, and hazardous high-voltage tampering. Our custom one-way pan head fasteners secure sheet metal enclosures, internal DC contactor boxes, and heavy busbar connections, ensuring that high-voltage safety interlocks are physically non-serviceable by unqualified operators.
Remote solar farms spanning thousands of acres face substantial risk of panel module extraction by coordinated scrap networks. Integrating specialized one-way shear fasteners or custom unslotted clutch screws into aluminum module racking permanently secures PV modules to purlins, ensuring dynamic wind load resistance up to 2.4 kPa while eliminating panel detachment risks over a 25-year lifespan.
High-security custodial environments, subway ticketing portals, and platform safety gates demand structural hardware that cannot be fashioned into tools or weapons. Flush-mount countersunk one-way machine screws eliminate snag points and resist unauthorized removal using makeshift friction implements, wire leads, or coin edges, satisfying demanding international penal safety codes.
Enterprise server cages, edge computing enclosures, and 5G small cell mast-top hardware require hardware-enforced chain-of-custody protocols. Utilizing custom one-way fasteners on outer chassis panels prevents internal access to proprietary PCBAs, storage drives, and cryptographic processing modules, ensuring strict adherence to zero-trust physical security standards.
Operating under rigorous IATF 16949 automotive disciplines, fully compliant with global environmental laws, and charting future smart-fastener systems.
From raw wire rod spectrographic analysis through multi-stage cold heading and optical grading, our manufacturing lines adhere to automotive-tier Advanced Product Quality Planning (APQP) and Production Part Approval Process (PPAP Level 3). Statistical process controls continuously monitor critical head dimensions, slot depths, and thread pitch diameters, guaranteeing total batch-to-batch consistency across high-volume production runs.
All custom surface coatings, passivations, and locking compounds are 100% compliant with EU RoHS Directives (2011/65/EU and 2015/863) and REACH regulations (EC 1907/2006). Every export shipment includes third-party mill test certificates, RoHS compliance declarations, and material traceability documents, enabling smooth customs clearance and environmental auditing for global supply chains.
Our engineering R&D division is developing next-generation tamper-evident solutions: micro-encapsulated color-change adhesive patches that indicate reverse torque attempts, RFID-embedded fastener heads for digital asset tracking, and advanced cold-heading dies capable of embedding unique, serialized microscopic QR codes directly into the one-way head recess during high-speed forming.
Key design considerations, installation kinematics, and extraction containment for procurement specialists and mechanical engineers.
Standard tamper-resistant fasteners (such as Pin-Hex, Torx Plus Security, or Spanner/Snake-Eye) employ non-standard, two-way driving geometries that permit both installation and authorized removal when using matching proprietary bits. Over time, commercial availability of these bits reduces their security effectiveness. In contrast, true one-way security screws utilize asymmetric drive slopes that permanently disallow reverse mechanical engagement; removal cannot be achieved via driver tooling and requires destructive machining, providing maximum long-term anti-vandal assurance.
Yes. While one-way screws feature reverse cam-out ramps, the forward driving edge is perpendicular and precision-formed to match industrial driver bits or standard slotted driver systems. For high-speed OEM production lines, our engineering team designs custom bit-to-recess tolerances with automatic feeder alignment guides, ensuring minimal wobble, consistent seat torque, and zero cam-out during rapid automated assembly.
Thread galling is a common risk in austenitic stainless steel (SS304/316) applications where high driving torque generates friction-induced microwelds. To combat this, YH Fastener provides engineered solutions including precision micro-waxing (dry film lubrication), specialized molybdenum disulfide (MoS2) anti-friction coatings, or pre-applied micro-encapsulated polyamide patches that reduce thread friction while preventing vibrational back-out.
For custom proprietary drive geometries requiring new heading dies and punch tooling, our internal tooling fabrication center completes die design, EDM machining, and prototyping within 10 to 15 business days. Pilot production batches and PPAP sample reports are typically delivered within 20 days. Standard custom production MOQs begin at 10,000 to 50,000 pieces depending on wire diameter, metric size (M2 to M16), and material alloy.
In applications where routine field maintenance is necessary, we typically recommend a multi-tier fastening strategy: using one-way screws exclusively on outer security shells or battery lockout zones, while using matched security Torx with center pins on interior serviceable compartments. If a permanent one-way screw must be removed during factory overhaul, authorized service protocols utilize specialized high-speed carbide core drills or reverse-spiral extraction extractors designed to drill out the cold-headed head without harming female tapped threads.

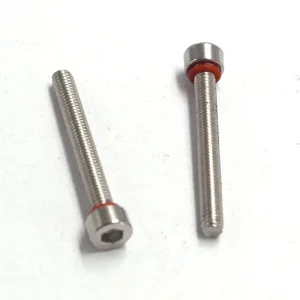

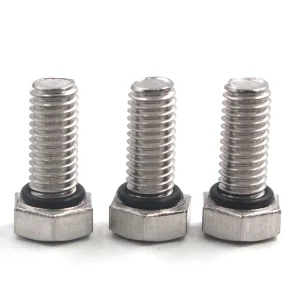

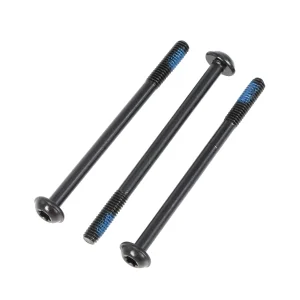

Complete precision manufacturing lines for flush-mount, anti-loosening nylon patch, and waterproof sealing applications.
Whether optimizing an existing assembly line to prevent unauthorized tampering or designing a proprietary cold-headed security screw head from 3D CAD models, our engineering team responds with complete DFM analysis and technical feasibility reviews within 24 hours.
